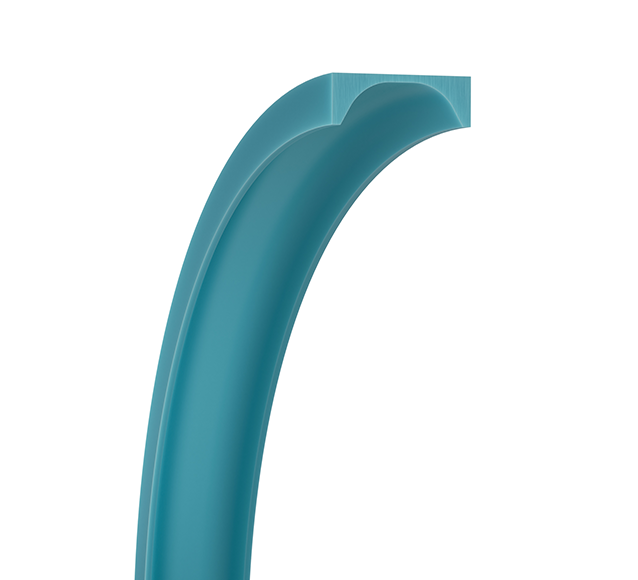

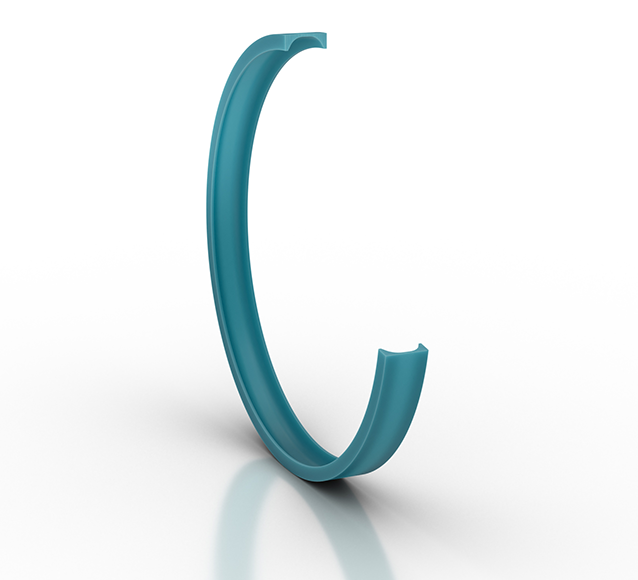

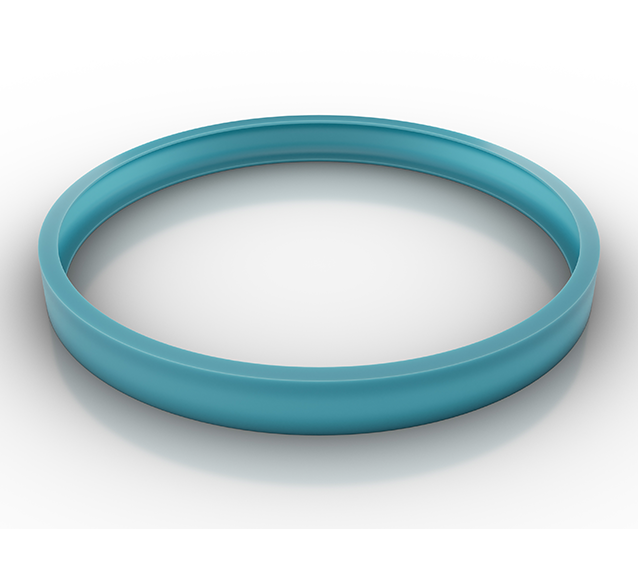

The Double Delta® is a double-acting PTFE sealing element which is energized by an elastomer O-Ring. The Double Delta® seal can be fitted in existing O-Ring grooves (US standard AS 568 A, MIL-P-5514) and it demonstrates good friction properties, stick-slip-free starting and excellent dry running. The Double Delta® is used in light and medium duty industrial hydraulics. Available in Turcon® or Zurcon® materials. The O-Ring is not included with this item.
Pist/DoubleDelta®Turcon®:
TSS Article Number (3 to 9)D000150
Signature StandardPDD000150-T05
Type of Article0
Quality (10th Digit)-

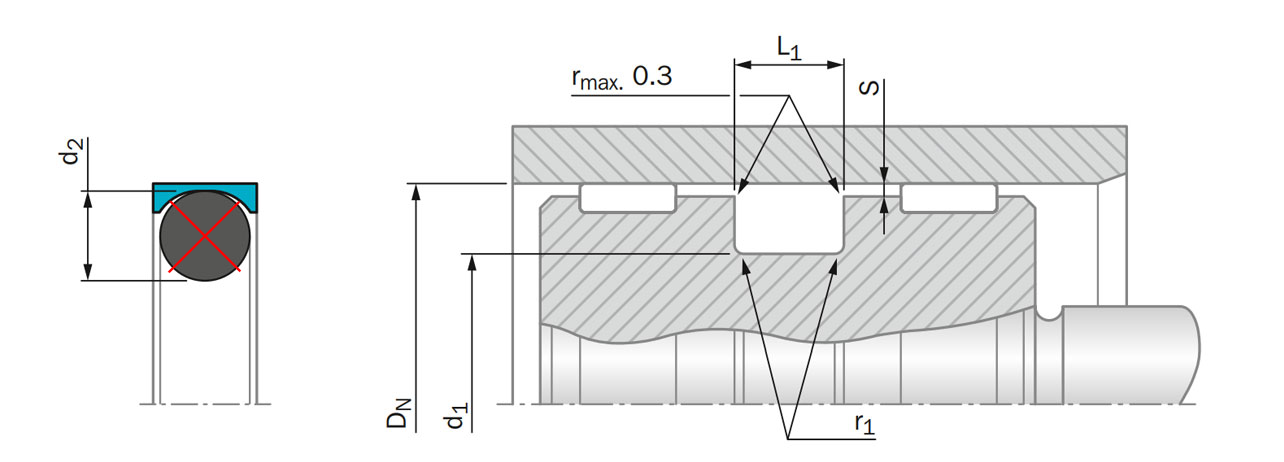

Root Groove Thickness1.45 mm
Root Groove Inside Diameter12.1 mm
Root Groove Outside Diameter15 mm
Root Ring Inside Diameter13.9 mm
Root Groove Width2.4 mm
Groove Diameter Outside15 mm
Groove Diameter Inside12.1 mm
Groove Thickness1.45 mm
Groove Width2.4 mm
Ring Length0 mm
Ring Width2.19 mm
Ring Thickness0.65 mm
Legacy ID from KOM2PDD000150-T05
Root Ring Width2.19 mm
Root Ring Outside Diameter15.2 mm
Root Ring Length0 mm
Article GroupPD
Root Ring Thickness0.65 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From16.5 mm
Material Number200000058009
Seal Tube OD Tolerance Max16 mm
Seal Tube ID Tolerance Min-16 mm
Seal Tube ID Tolerance Max-1.3 mm
Seal Tube OD Tolerance To31.2 mm
Seal Tube ID Tolerance To12.6 mm
Seal Tube ID Tolerance From-2.1 mm
Class Dependencies200000058009
Ring Diameter Outside15.2 mm
Compound codeT05
Ring Diameter Inside13.9 mm
Compound Type110
Seal Tube OD Tolerance Min1.3 mm
Material Information for the product(s) on this page
T05
Gravity Tolerance:
+/-0.02
Material Type:
PTFE
Ball Hardness:
24
Maximum Temperature:
260
Material Code Class:
Thermoplastic
Specific Gravity:
2.17
Minimum Temperature:
-200
Material:
T05
Color:
Turquoise
Gravity Unit:
g/cm³
