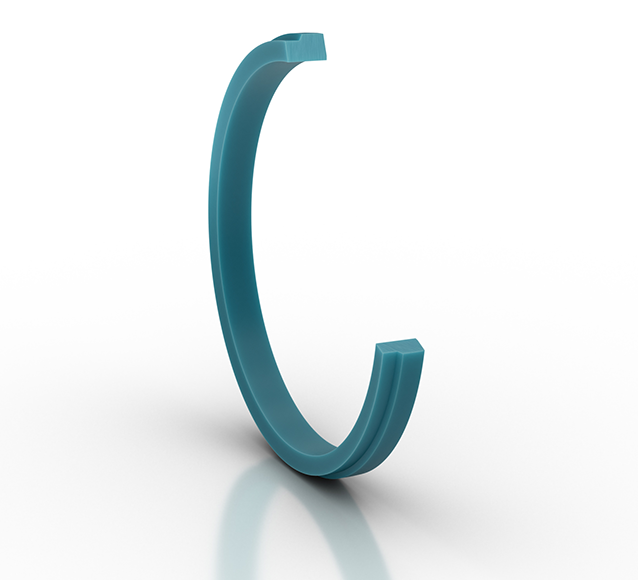

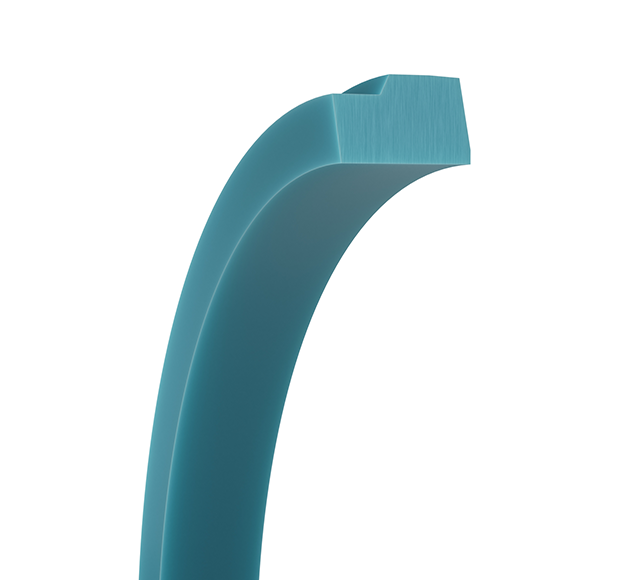

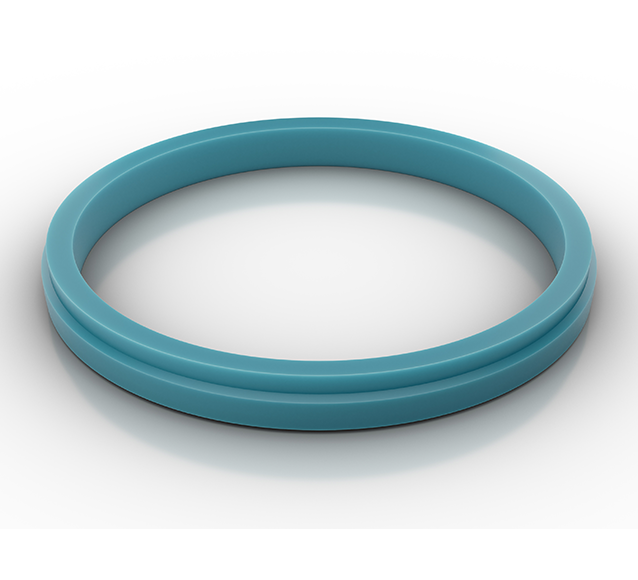

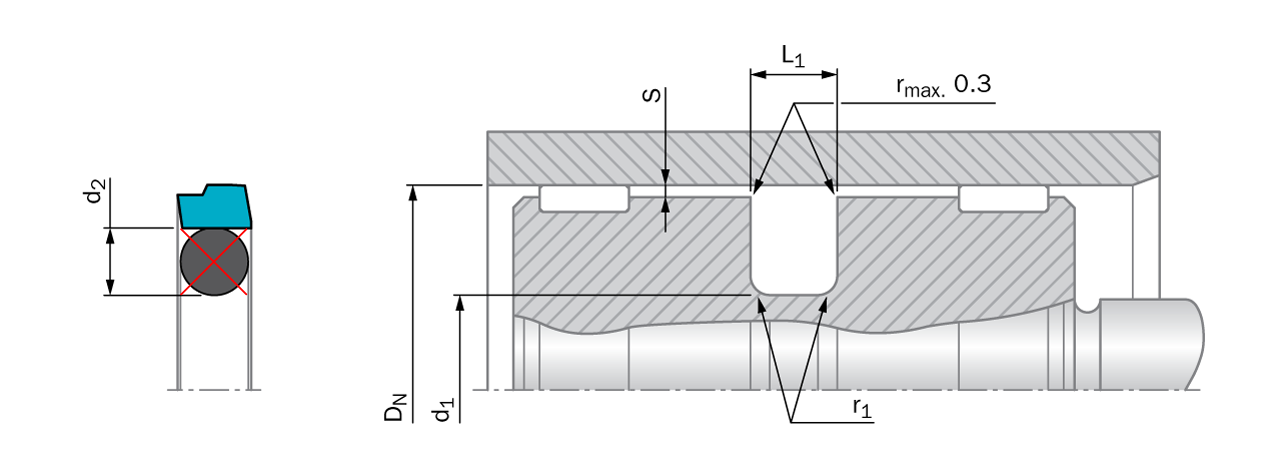

Zurcon® Rimseal is an elastomer energized seal element. The changes in seal position in the groove, necessary for optimum sealing function, are guaranteed by the combination of the two parts: the O-Ring and seal ring. In order to achieve a contact force increasing sealing effect with increasing pressure, the seal has a chamfer on the low pressure side which causes the seal to tilt slightly so that the seal ring is forced against the side of the groove. This creates an area of maximum pressure at the edge of the seal. The O-Ring is not included with this item.
Piston/Rimseal/Zurcon®:
TSS Article Number (3 to 9)1401800
Signature StandardPR1401800-Z53
Type of Article0
Quality (10th Digit)-
Root Groove Thickness7.55 mm
Root Groove Inside Diameter164.9 mm
Root Groove Outside Diameter180 mm
Root Ring Inside Diameter173.3 mm
Root Groove Width6.3 mm
Groove Diameter Inside164.9 mm
Groove Diameter Outside180 mm
Groove Width6.3 mm
Groove Thickness7.55 mm
Ring Thickness3.3 mm
Ring Width6 mm
Legacy ID from KOM2PR1401800-Z53
Root Ring Width6 mm
Root Ring Outside Diameter179.9 mm
Article GroupPR
Root Ring Thickness3.3 mm
Seals Helsingor Material Class:
Seal Tube OD Tolerance From182.9 mm
Material Number200000041088
Seal Tube OD Tolerance Max50 mm
Seal Tube ID Tolerance Min-50 mm
Seal Tube ID Tolerance Max-3 mm
Seal Tube OD Tolerance To229.9 mm
Seal Tube ID Tolerance To170.3 mm
Seal Tube ID Tolerance From123.3 mm
Class Dependencies200000041088
Ring Diameter Outside179.9 mm
Compound codeZ53
Ring Diameter Inside173.3 mm
Compound Type110
Seal Tube OD Tolerance Min3 mm
Material Information for the product(s) on this page
Z53
Shore D Hardness:
70+/- 6
Hardness unit:
Shore D
Material:
Z53
Material Type:
PUR
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.02
Gravity Unit:
g/cm³
Minimum Temperature:
-45
Maximum Hardness:
70
Color:
Yellow to Light-Brown
Specific Gravity:
1.18
Minimum Hardness:
70
Hardness Tolerance:
+/- 6
Maximum Temperature:
110
