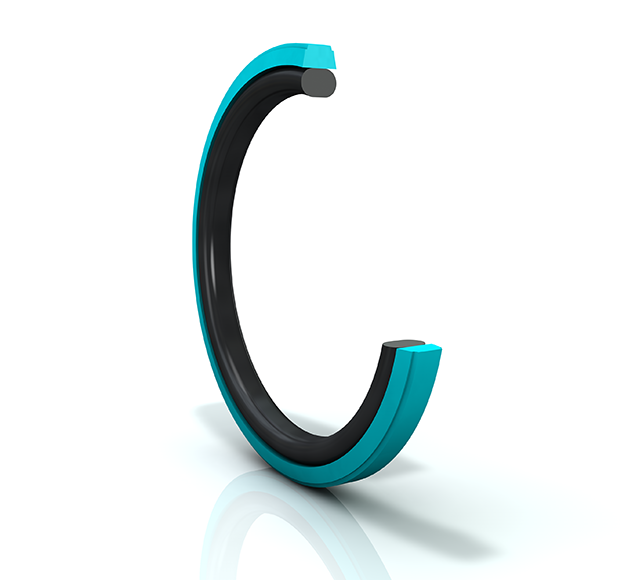

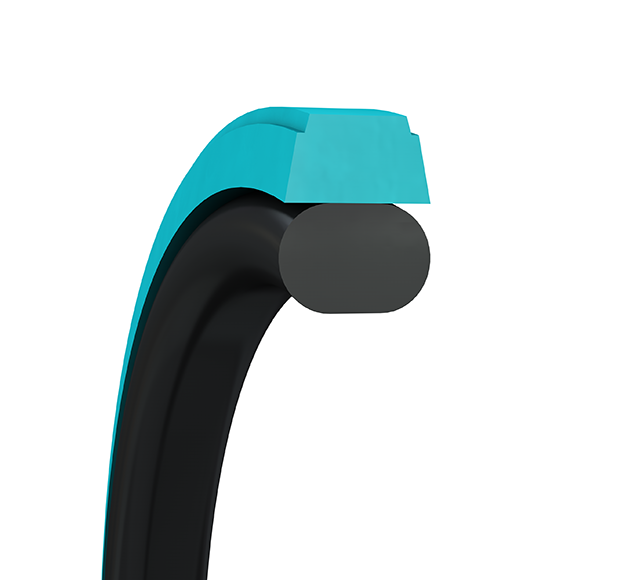

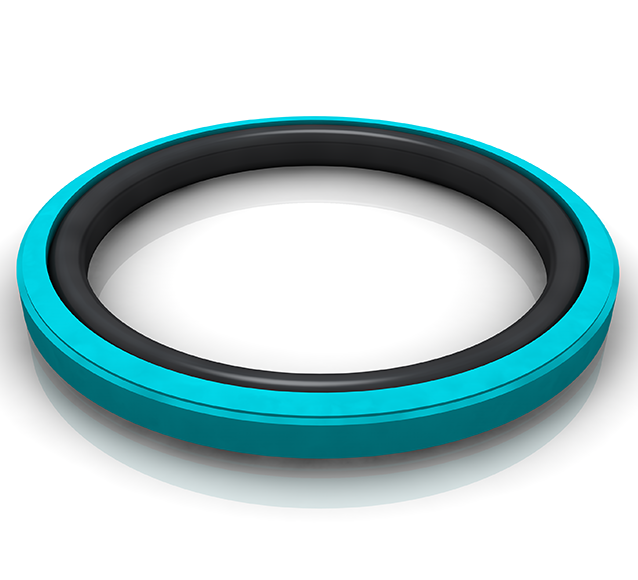

The Glyd Ring® T's benefits are provided by the innovative functional principle of the trapezoidal profile cross section. The sides of the seal profile taper towards the seal surface. The profile can thus retain the robust and compact form typical of piston seals without losing any of the flexibility required to achieve a pressure-related maximum compression. Available in Turcon® or Zurcon® materials.
Piston/GlydRing®TTurcon®:
TSS Article Number (3 to 9)80
Signature StandardPT0000080-T46N
Type of Article0
Quality (10th Digit)-

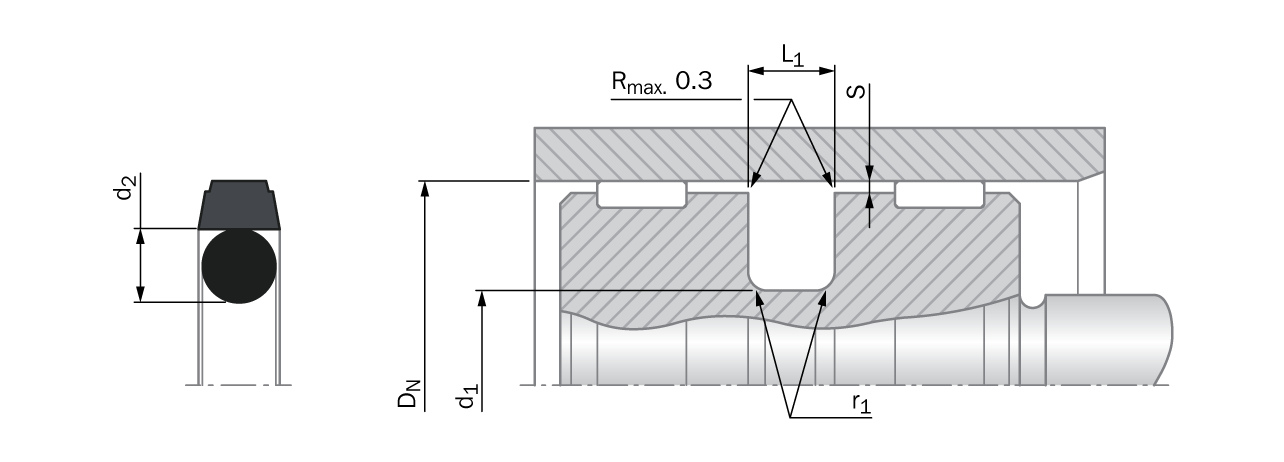

Root Groove Thickness2.45 mm
Root Groove Inside Diameter3.1 mm
Root Groove Outside Diameter8 mm
Compound codeT46N
Root Groove Width2.2 mm
Groove Diameter Outside8 mm
Groove Diameter Inside3.1 mm
Groove Thickness2.45 mm
Groove Width2.2 mm
Article GroupPT
Material Information for the product(s) on this page
T46
Gravity Unit:
g/cm³
Material:
T46
Material Type:
PTFE
Material Code Class:
Thermoplastic
Maximum Temperature:
260
Minimum Temperature:
-200
Ball Hardness:
29
Color:
Greyish to Dark Brown
Gravity Tolerance:
+/-0.04
Specific Gravity:
3.07
N7083
Color:
Black
Hardness unit:
Shore A
Hardness Tolerance:
+/- 5
Gravity Tolerance:
+/-0.02
Maximum Temperature:
100
Shore A Hardness:
70+/- 5
Material:
N7083
Minimum Hardness:
70
Maximum Hardness:
70
Minimum Temperature:
-30
Gravity Unit:
g/cm³
Material Type:
NBR
Specific Gravity:
1.24
Material Code Class:
Elastomer
