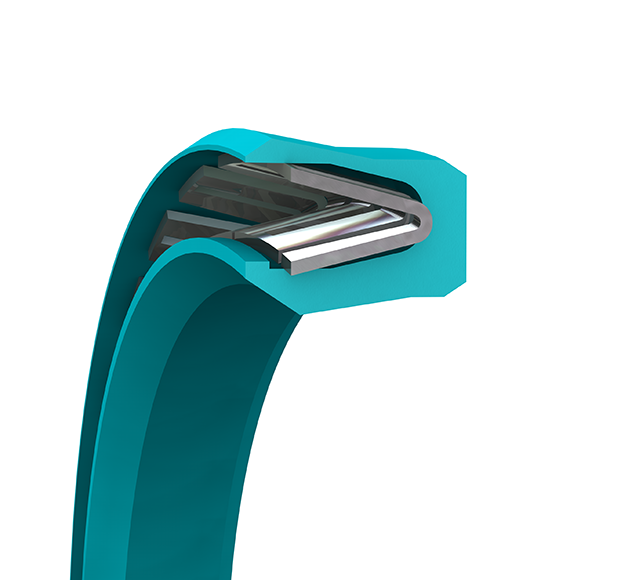

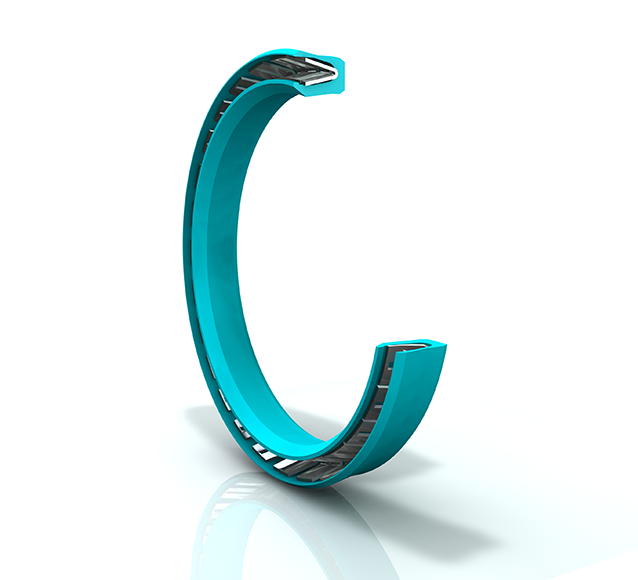

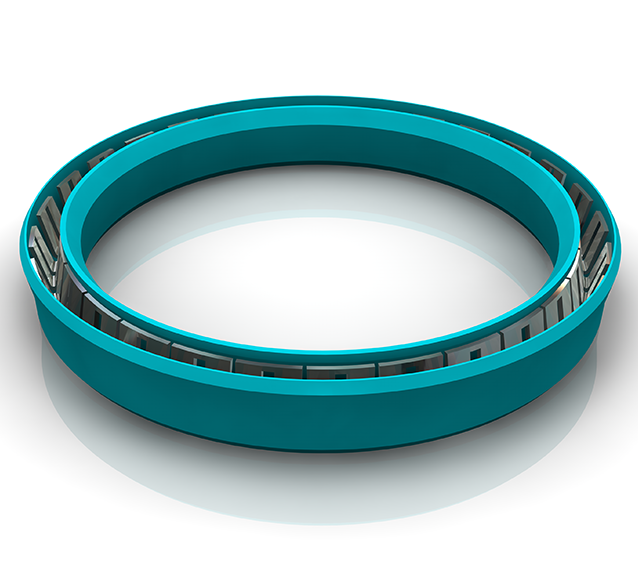

A single-acting sealing element comprised of a U-shaped PTFE ring and metallic energizing finger spring. It offers low friction with no stick-slip, minimal breakout force and high wear resistance. Resistant to most liquids and chemicals, it has an unlimited shelf life. Available in Turcon® or Zurcon® materials.
Rod/Variseal®:
TSS Article Number (3 to 9)A200200
Signature StandardRVA200200-T40S
Type of Article0
Quality (10th Digit)-

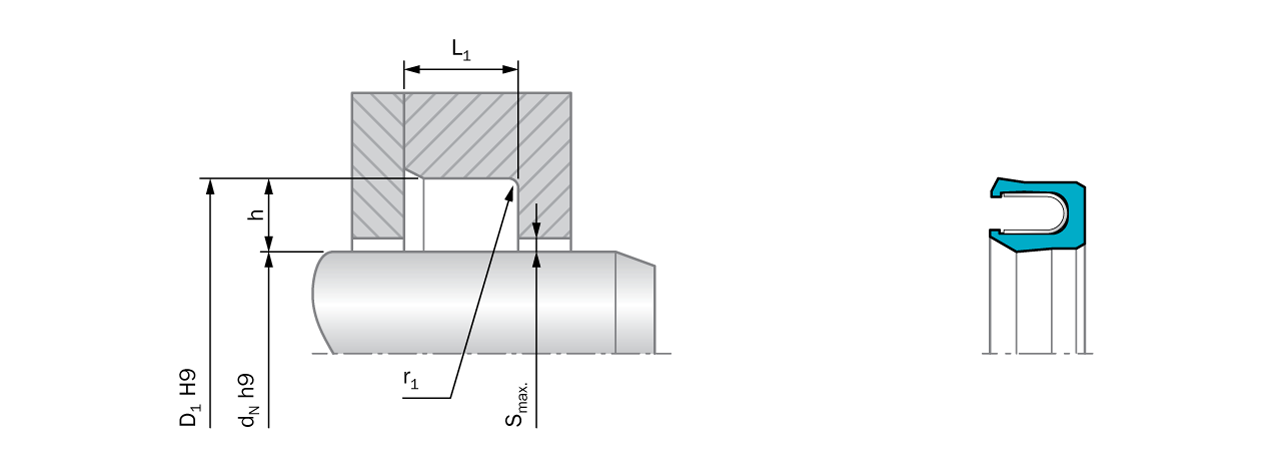

Root Groove Inside Diameter20 mm
Root Groove Thickness4.8 mm
Root Groove Outside Diameter26.2 mm
Compound codeT40S
Groove Diameter Inside20 mm
Groove Diameter Outside26.2 mm
Groove Width4.8 mm
Groove Thickness3.1 mm
Article GroupRV
Material Information for the product(s) on this page
T40
Material:
T40
Ball Hardness:
27
Minimum Temperature:
-200
Material Type:
PTFE
Specific Gravity:
2.07
Maximum Temperature:
260
Material Code Class:
Thermoplastic
Gravity Tolerance:
+/-0.03
Gravity Unit:
g/cm³
Color:
Grey
